Calculator Description
Second Moment of Area Calculator v1

Area Moments

The second moment of area calculator is used to calculate the moment of inertia or area moments and radius of gyration of solid and hollow shapes

Subject

The term 'area moment'defines the 2-D structural properties of a 3-D body's cross-section and thereby its ability to resist deformation.

You can improve a body's resistance to a particular loading condition with little or no weight penalty simply by altering the shape of its cross-section.
For example, an I-Beam of a given cross-sectional area (or weight) will provide greater bending resistance than an equivalent H-Beam with similar cross-sectional area but less torsional resistance, and large thin-wall sections will provide considerably greater bending and torsional resistance than a smaller thick-walled section of similar weight.

You simply select the lightest, strongest sectional shape for your purposes.

Calculator

Area Moments includes five calculation options for solid and/or hollow; polygons, triangles, quadrilaterals, ellipses and parts of a circle about their natural and strong-weak axes and for each of which it calculates the area, second moment of area, polar moment of inertia, centre of area and radius of gyration.

The output data from Area Moments may be used as input to other calculators such as Beams, Engineering Principles, Beams+ and Mode Shapes.

For help using this calculator, including its internal self-checking facility, see Technical Help

Area Moments Calculator - Options

Hollow Triangle

Hollow Triangle provides solutions for hollow and solid triangles with both obtuse and acute triangles and a constant wall thickness.

You enter: and the second moment of area calculator will provide:
  • Base length
  • Height
  • Slip (apex offset)
  • Wall thickness
  • Cross-sectional area
  • Second moment of area (with respect to horizontal, vertical, strong and weak axes)
  • Radii of gyration (with respect to horizontal, vertical, strong and weak axes)
  • Polar moment of inertia

Hollow Quadrangle

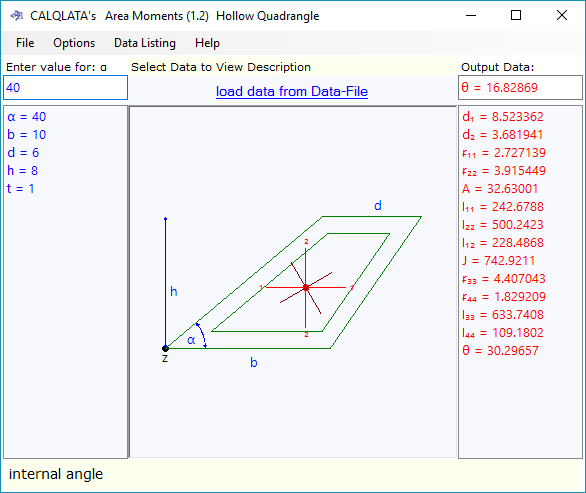

Hollow Quadrangle provides solutions for hollow and solid quadrilaterals with both obtuse and acute and a constant wall thickness. The only constraint with respect to shape variation is that the base and cap must be parallel.

You enter: and the second moment of area calculator will provide:
  • Base length
  • Cap length
  • Height
  • Slip (cap offset)
  • Wall thickness
  • Cross-sectional area
  • Second moment of area (with respect to horizontal, vertical, strong and weak axes)
  • Radii of gyration (with respect to horizontal, vertical, strong and weak axes)
  • Polar moment of inertia

Polygon

Polygon calculates the properties of a solid regular polygon with up to and including 1E+307 sides.

You enter: and the second moment of area calculator will provide:
  • Number of sides
  • Inscribed radius (to a flat)
  • Circumscribed radius (to a corner)
  • Cross-sectional area
  • Second moment of area
  • Radii of gyration (with respect to horizontal, vertical, strong and weak axes)
  • Polar moment of inertia

Ellipse

Ellipse calculates the properties of a solid regular ellipse.

You enter: and the second moment of area calculator will provide:
  • Radii (both axes)
  • Cross-sectional area
  • Second moment of area
  • Radii of gyration (with respect to horizontal, vertical, strong and weak axes)
  • Polar moment of inertia

Sector

Sector calculates the properties of part of a circle (up to and including a full circle) with a constant wall thickness.

You enter: and the second moment of area calculator will provide:
  • Arc-angle
  • Internal radius
  • External radius
  • Cross-sectional area
  • Second moment of area
  • Radii of gyration (with respect to horizontal, vertical, strong and weak axes)
  • Polar moment of inertia

Important Note: Area Moments calculates the structural properties of individual shapes, both solid and hollow. You can combine these shapes to calculate the structural properties of complex shapes using Area Moments+.
